Oil Pan Thief Hatch, LaMOT

Product Description

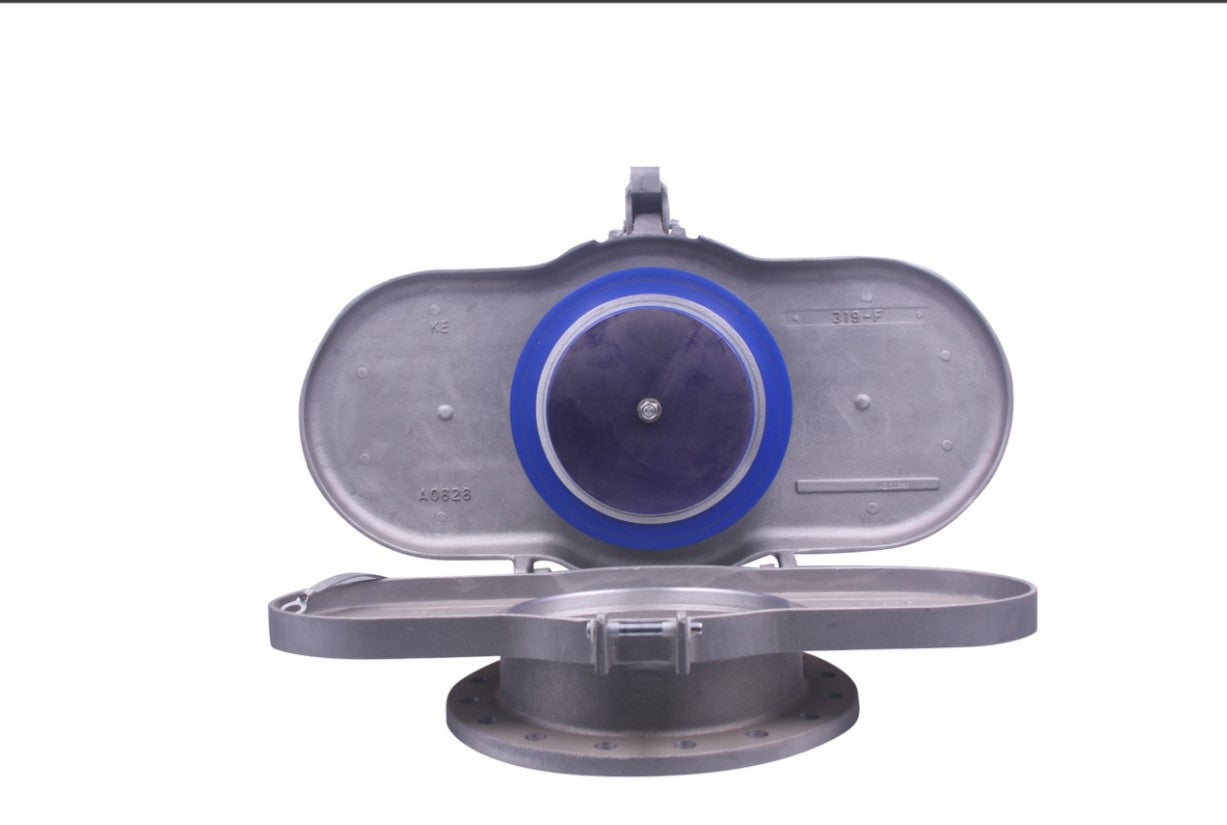

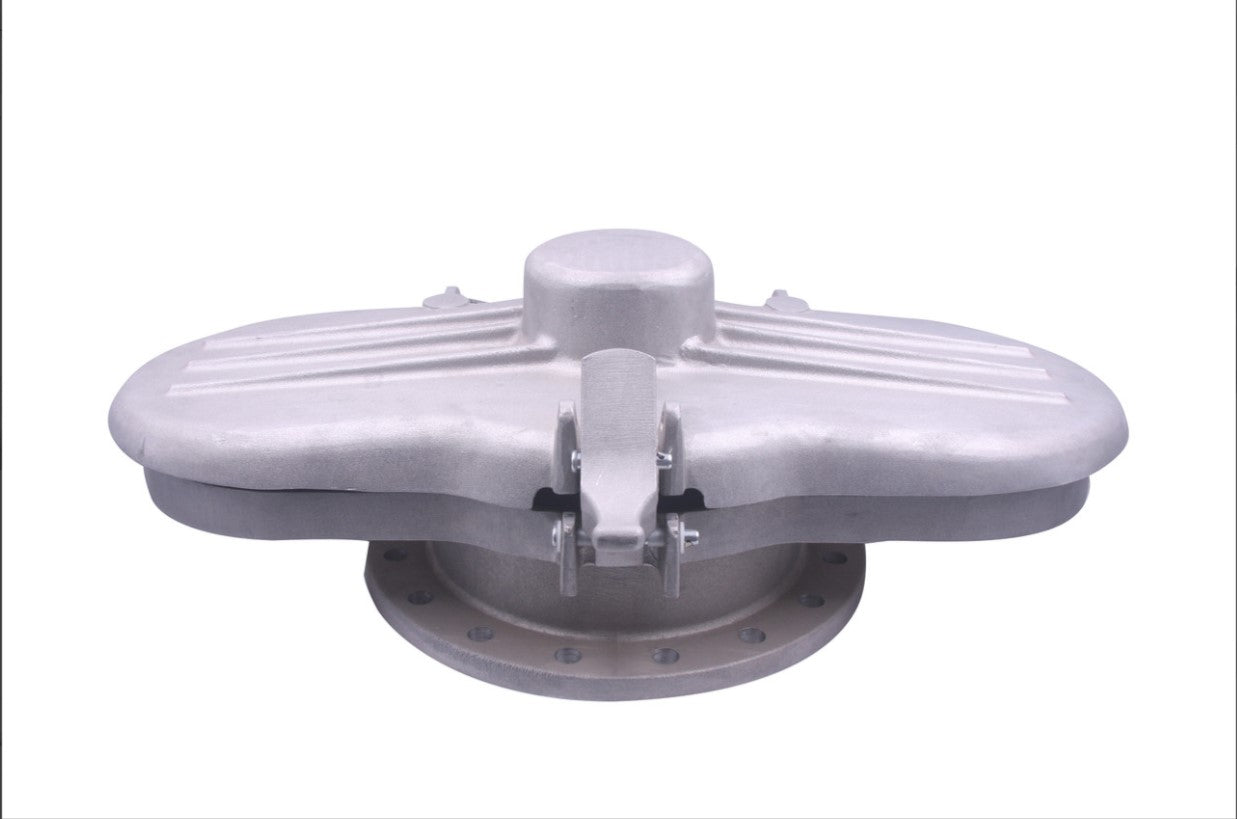

LaMOT Oil Pan Thief Hatch (MODEL L12-TL)

The L12-TL incorporates a large working surface, larger cover and a gauging and sampling hook into the base. The base is inclined to match the slope of the API 12 tank’s roof to provide a level working surface.

The L12-TL outperforms the competition with industry-leading flow rates and high-precision tolerances for a superior seal. A leakage rate less than 1 SCFH of air at 90% of set pressure keeps your tanks in compliance with industry standards.

Thief hatches are used on steel or fiberglass (FRP) low-pressure oil tanks to provide access for level gauging, sampling and overpressure or vacuum protection, all in one compact design.

Features:

• Long pan contains product loss during sampling
• Ultra-tight sealing reduces product leakage and fugitive emissions
• Higher flow capacity prevents excessive pressure buildup
• Easily maintained, reducing downtime and lowering operational costs
• Corrosion resistance can be enhanced with FKM soft goods and coating
• Incorporates a mechanical lock system to be used with a padlock or lockout bar
• Bonding strap comes standard
