Oil Pan Thief Hatch, Enardo

  • $0.00
    Unit price per


Product Description

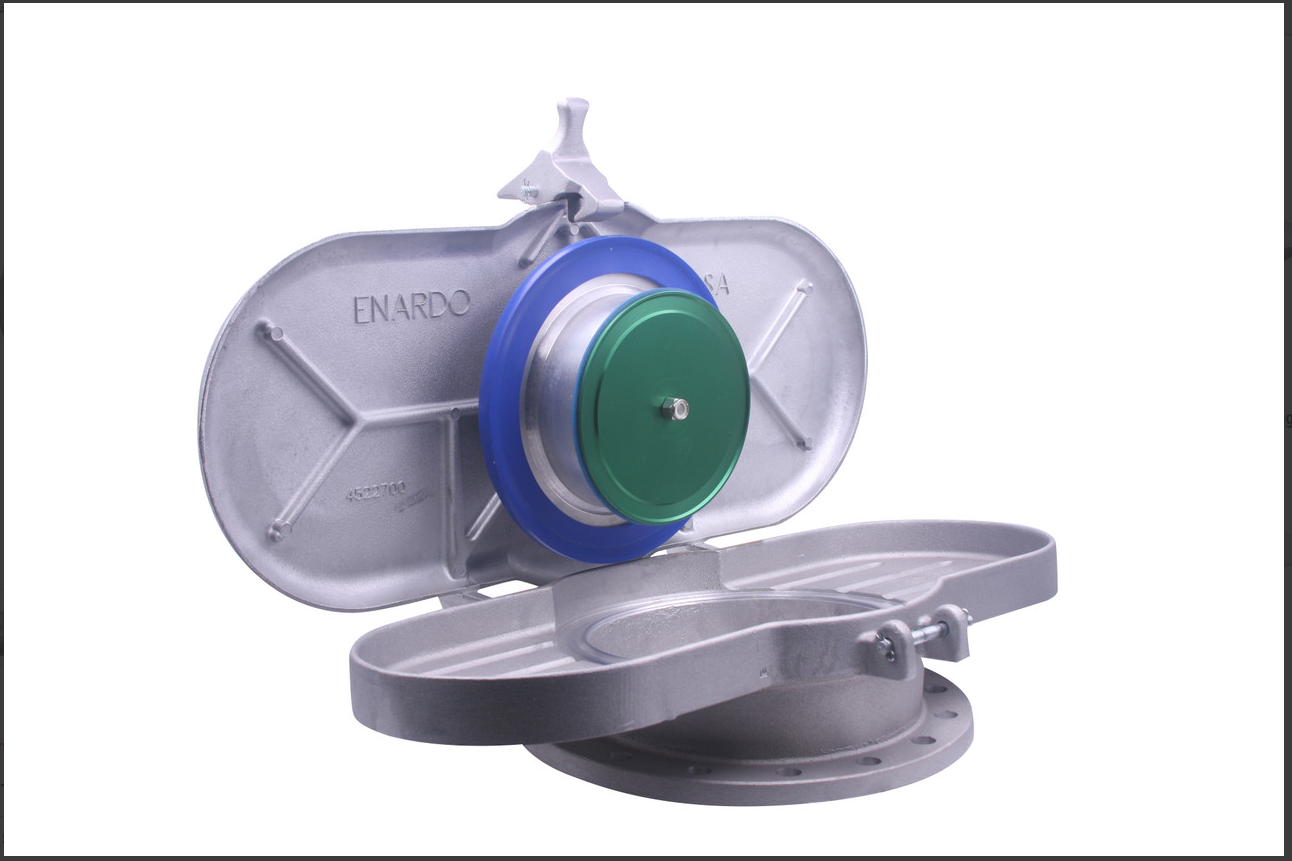

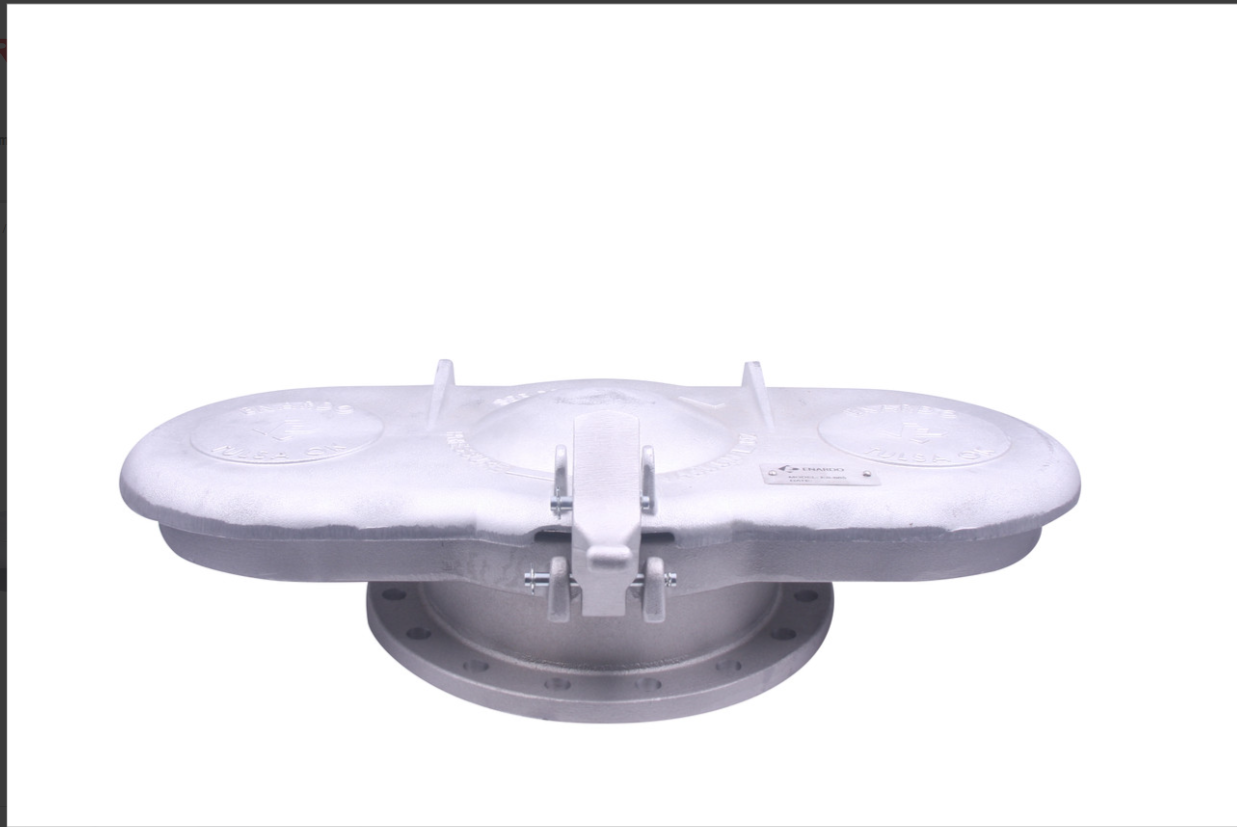

Enardo ES665L Oil Pan Thief Hatch **Does not include grounding cable**

The Model ES-665 is a new generation hatch designed with precision-manufactured internal components, a round base and cover, and is intended for use in applications where ultra-tight sealing is required such as sour crude/gas or where strict environmental emissions standards are enforced.

Features:

  • Enhanced Sealing Technology
  • Tank Gauging
  • Pressure Control
  • Vacuum Control
Specifications:
  • Performance: Tight to 0.10 SCFH at 90% of set pressure, at 68°F / 20°C
  • Pressure Settings: 4, 6, 8, 12, 16, 24 and 32 oz./sq. in.
  • Vacuum Settings: 0.4, 0.9 and 3.5 oz/sq in
  • Bolt Pattern: 8 in. API
  • Construction:
    • Casting: Aluminum
    • Pressure Gasket: HNBR (standard), Fluorosilicone, Viton, EPDM
    • Vacuum Gasket: Fluorosilicone (standard), Viton, EPDM Food Grade
    • Optional Equipment: Base Gasket, Bolt Set, Non-Corrosive Coating, Bonding Strap, Thrust Bearin



×

Call for Price
