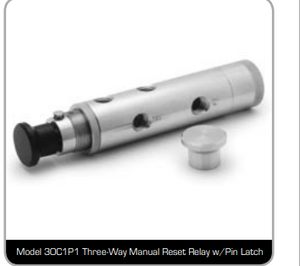

Model 30C1P1 Three-Way Manual Reset Relay with Pin Latch

DESCRIPTION

The NUTECH Model 30C1P1 is a three-way
universal, manual reset, pneumatic control relay with
pin latch. The relay can be locally mounted or panel-mounted. This relay is well-suited in applications
requiring three-way block and bleed of a control
signal, with manual reset and pin latch option, such
as control of a shutdown valve (SDV) or first
out indicating group reset relay.

FEATURES
The pin latch provides lockout capability with
automatic unlatching when pilot port pressure is
present.
Relay design provides for center crossover closed
condition during spool travel.
Routine maintenance procedures can be performed
without removing the device from its mounting in
most applications.
May be universally configured (three-way normally
closed, three-way normally open, etc.).
Screw-on rear cap assembly provides for simplified
maintenance.

SPECIFICATIONS
Operating pressure range 25-125 psig
Material 316 SS per ASTM A-276
O-ring Viton®
, Temp. range -15˚F to + 400˚F (std.)
 BUNA-N, Temp. range -65˚F to + 215˚F (opt.)
Knob Delrin® (std.)
Stainless Steel (opt.)
Length (reset) 8.32”
Length (tripped) 7.69”
Diameter 1.50”
Connections 1/4” FNPT
Weight 3.25 lb
