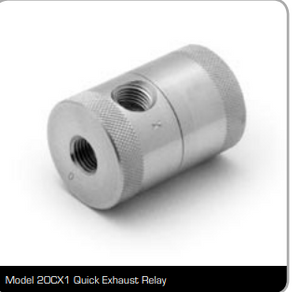

Model 20CX1 Quick Exhaust Rela

DESCRIPTION

The NUTECH model 20CX1 is a quick exhaust relay
used in pneumatic systems to provide rapid venting
of pneumatic signals. Typical applications include use
on well SSVs and process SDVs.

FEATURES
Simple design provides high reliability at low cost.
Screw-on rear cap assembly provides for simplified
field maintenance.

SPECIFICATIONS
Operating pressure range 40-125 psig
Material 316 SS per ASTM A-276
O-ring Viton®
, Temp. range -15˚F to + 400˚F (std.)
 BUNA-N, Temp. range -65˚F to + 215˚F (opt.)
Length 2.21”
Diameter 1.50”
Connections 1/4” FNPT
Weight 1.1 lb
