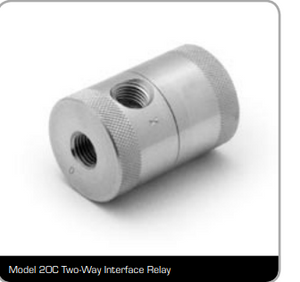

Model 20C Two-Way Interface Relay

DESCRIPTION

The NUTECH model 20C is a two-way interface
relay used in NUTECH systems where control of one
first-out indicating group is required by one or more
other groups.

FEATURES
Simple design provides high reliability at low cost.
Screw-on rear cap assembly provides for simplified
field maintenance.

SPECIFICATIOS
Operating pressure range 30-100 psig
Material 316 SS per ASTM A-276
O-ring Viton®
, Temp. range -15˚F to +400˚F (std.)
 BUNA-N, Temp. range -65˚F to +215˚F (opt.)
Length 2.21”
Diameter 1.50”
Connections 1/4” FNPT
Weight 1.1 lb
