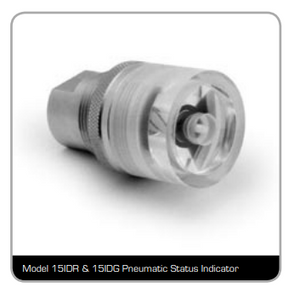

Model 15IDR & 15IDG

Model 15IDR & 15IDG

DESCRIPTION:

The NUTECH model 15ID is a panel-mounted
pneumatic device used as a status indicator. The
device is also used on the 30C1W1 and 30CA1W1
relay to display status of pilot port (P1) pressure.
15IDR - Normally Red (No Pressure)
15IDG - Normally Green (No Pressure)

FEATURES:

Simplicity of design provides high reliability at low cost.
Routine maintenance procedures can be performed
without removing the device from its mounting in
most applications.
The ability to serve multiple functions reduces the
spare-parts requirements

SPECIFICATIONS:

Operating pressure range 25-125 psig
Material 316 SS per ASTM A-276
O-ring Viton®
, Temp. range: -15˚F to +400˚F (std.)
 BUNA-N, Temp. range: -65˚F to +215˚F (opt.)
Length 2.38”
Diameter 1.50”
Connections 1/8” FNPT
Weight 0.50 lb
