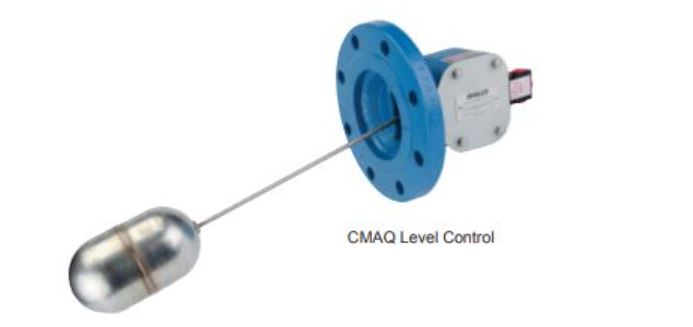

Invalco Model CMAF and CMAQ
The INVALCO Models CMAQ and CMAF are snap-action, float-operated level controls, equipped with a three-way Micro Valve® unit, actuated by two adjustable arms. Adjustable pusher arms permit the control range to be adjusted easily and accurately to the range desired.
SPECIFICATIONS
| Float Size | 3-1/2″ diameter x 6″ long |
| Working Pressure | 300 psig (limited by collapse pressure of float and process connection). |
| Temperature Limits | -20°F to 250°F |
| Micro Valve® | • Model: 316F1, three-way • Ports: Three 1/4″ FNPT • Body: Anodized aluminum • Orifice: Standard 1/16″ (100 psi maximum line pressure). • Optional 1/32″ (250 psi maximum line pressure). |
